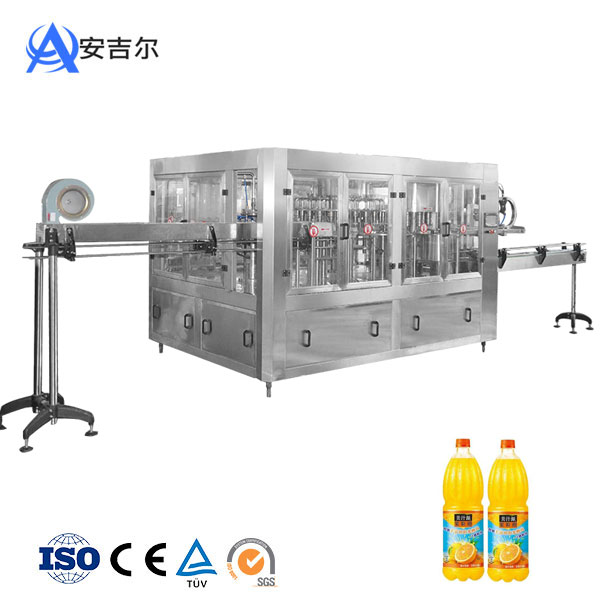

Automatic Orange Juice Filling Machine 8000BPH
RCGF series 3-in-1 set of machine is mainly used in the beverage filling process. The machine combines washing, filling and capping with complete automation, suitable for filling juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling process adopts hot filling technology with water-supplying system under constant pressure, which makes filling process faster and more stable. Compared with other equipment of same kind, this machine with a better quality and thus enjoys a high ratio of function against price. The hot filling type machine works with balanced tank and vacuum system.
-
Automatic orange juice filling machine 8000BPH RCGF 24-24-8 technical introduction and working principle:
1). 1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

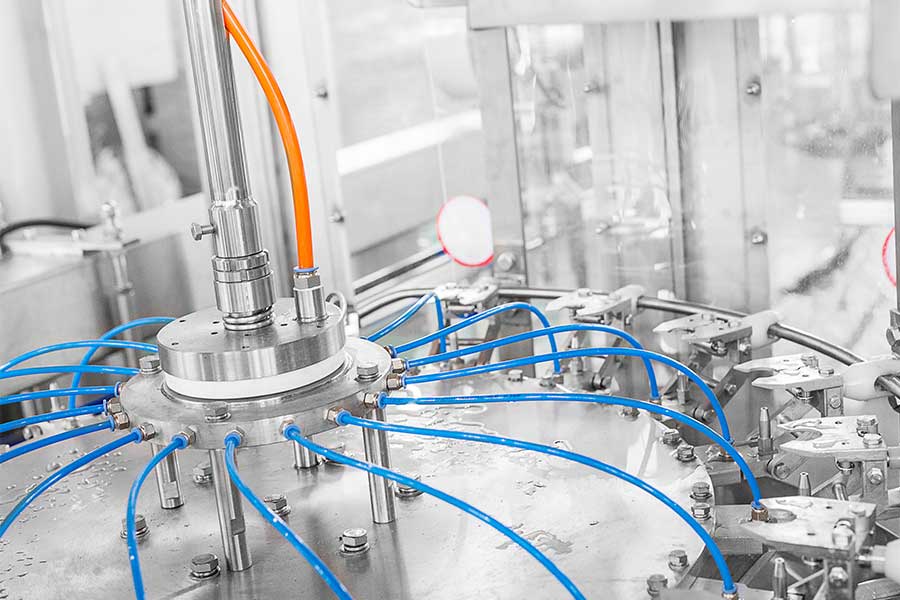

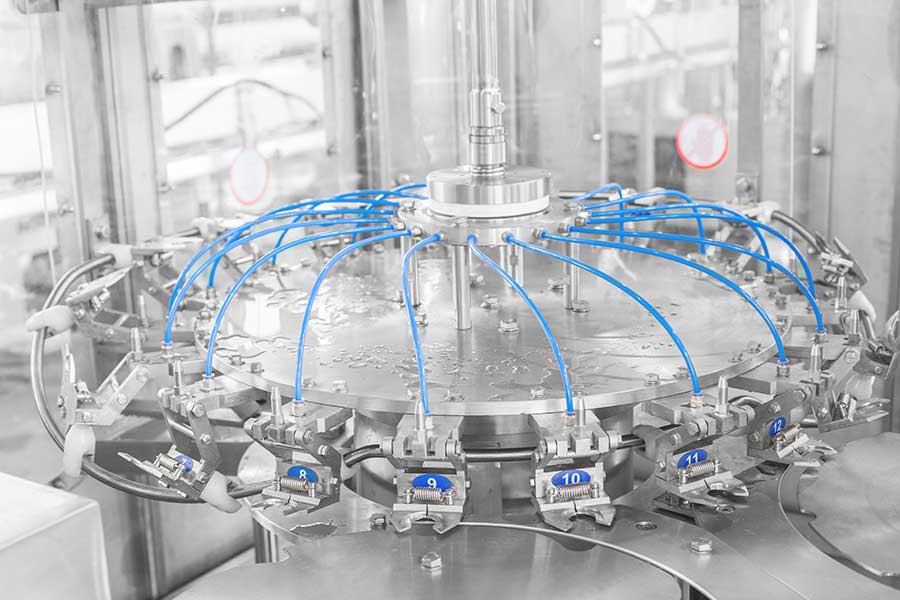

3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

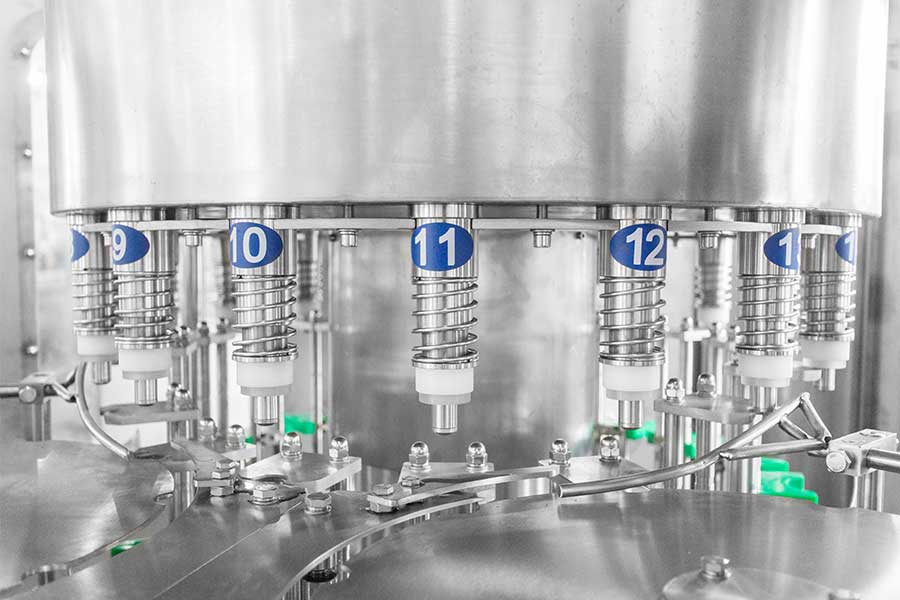

4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.
Containers and specifications
Project Name: Full Automatic Complete Juice 2000-20000bph Production Line
Hot Filling Fruit Juice
Material
Shape
Filling volume
Filling level（mm）
Neck type
PET Bottle
Square or Round Bottle
100-2000ml
Distance from bottle neck
According request
As request
Adjustable specifications of the bottle type
【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.Juice Preparation
Fruit , Concentrate, Powder mixing .....
Container Label & Control Mode
Packaging system
Palletizing system
Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / Automatic
Packing system
Min, Spec.
Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer
Manual
Film shrinker
Wrap Around packer
Robert Packing Machine
1*2
2*3
3*4
4*6
3*5
User Ambient Conditions
Temperature：10～40℃；Humidity：No dew
User Electrical Supply Specification
Voltage：380V±5%， 3phase； Frequency：50HZ±1%
-
Automatic orange juice filling machine
Juice Filling Machine suitable for filling different kinds juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling speed will not be affected.
-
問題1：你有參考項目嗎？
如果我們得到了從我們這里帶來機器的客戶的許可，我們?cè)诖蠖鄶?shù)國家都有參考項目，我們可以告訴你他們的聯系方式，你可以去他們的工廠參觀。
問題2：你有代理商和售后服務站嗎？
到目前為止，我們?cè)谝查T，肯尼亞，烏干達，印度和迪拜都有代理商，歡迎加入我們。
問題3：您提供定制服務嗎？
我們可以根據您的要求，材料，功率，填充類型設計機器。各種瓶子等，同時，我們會給你我們專業的建議，如你所知，我們已經在這個行業多年。
問題4：如果我們購買您的機器，您的保證或質量保證是什么？
我們?yōu)槟峁?年保修的高品質機器，并提供終身技術支持。
問題5：安裝多長時間？
根據機器訂單，我們會向您發送一到兩名工程師，大約需要10天到30天。
-
近15年來，安吉爾機械為世界各地的公司提供液體解決方案的裝瓶和包裝設備，包括灌裝線，果汁灌裝，碳酸軟飲料交鑰匙工程，石油和蘇打水灌裝線以及貼標和包裝機械。
所有不同的要求。安吉爾機械總能為您提供最專業的解決方案和交鑰匙工程。
-
安吉爾機械是......
*標準廠房總面積8000平方米。
不同類型的處理單元。如水刀，等離子切割機，臺灣騎士和韓國大宇數控機床，確保零件的精度。*國際認證，國家設備認證證書，30多項發明專利
設備驗證證書：ISO9001：2001：CE證書，SGS，COC，TUV。
國家設備認證證書：尼日利亞標準組織，CNCA證書商標注冊等
*設備出廠前24小時測試運行，確保水管順暢工作，氣動電氣和機械穩定。
*備件庫存充足，確保及時交付和供應備件。
*工程師經驗豐富，我們可以生產不同的產品
不同的容量和制定合理的流程圖作為客戶要求節省空間。
*專業的安裝團隊，能說流利的英語，可以幫助客戶在最短的時間內獲益。
我們通過自行制造和加工來控制設備的質量。請注意每個裝配細節，我們經驗豐富的技術人員在裝配過程中有效監控每個關鍵點，以確保每個產品的性能和外觀都是完美的。我們的顧客
幫助我們的客戶建立一個理想的工廠。通過高效的成本控制，我們與客戶找到了最佳的平衡點：多樣化的生產范圍，高級的包裝形式。由于設備的高效運行模式，同時提高了市場競爭力。
